DASH OVERVIEW

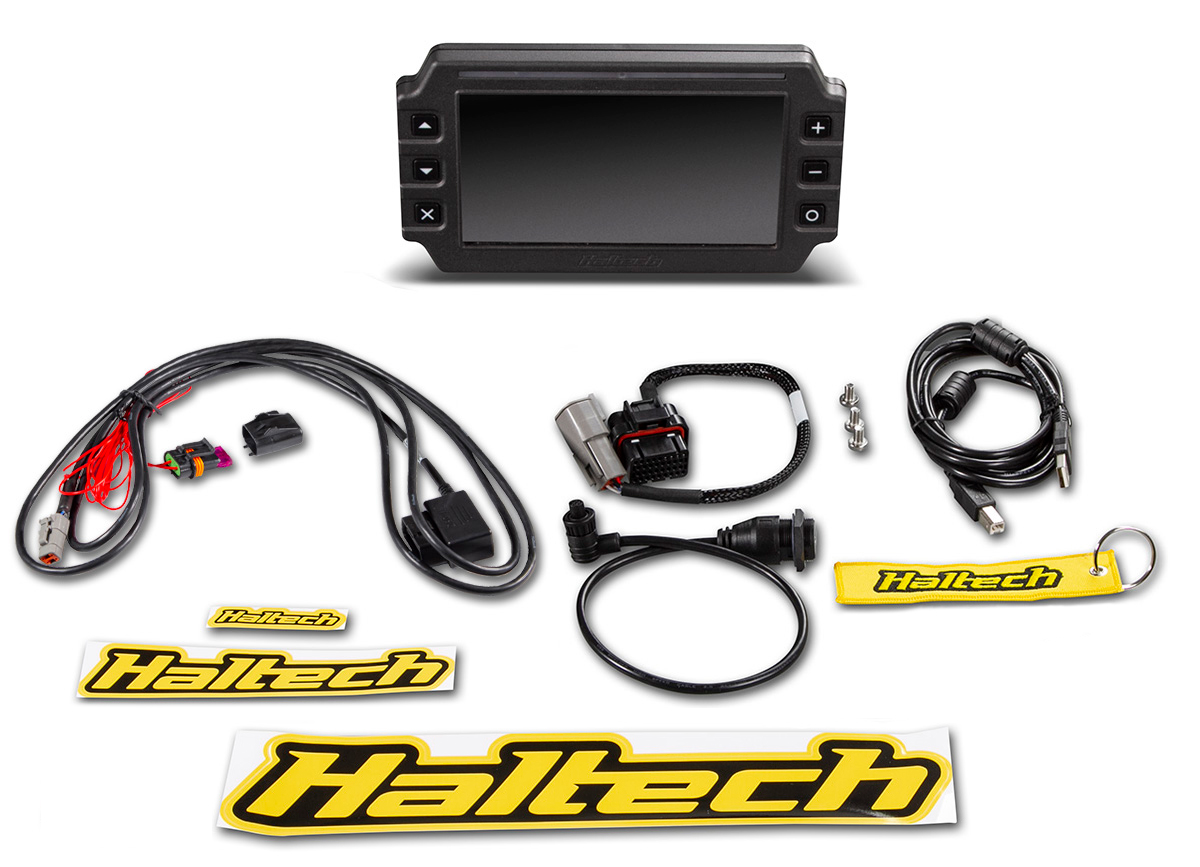

With a crisp, clear and full colour display, the all new Haltech iC-7 Display Dash lets you see things in a brand new way.
Designed and manufactured in Australia with motoring enthusiasts in mind, the iC-7 offers market-leading features in a unique, state-of-the-art package.
Featuring auto-dimming ambient light reactive brightness, user-programmable multi-colour shift light bar, the iC-7 connects directly to all current Haltech ECUs via a CAN network. The OBD-II iC-7 is preconfigured to connect directly (via CAN) to most late model vehicles (approx 2008-on) using the factory OBD-II port.
Ideal replacement for individual analogue gauge clusters.
Easy to install and configure.
User adjustable brightness control with automatic dimming.
User configurable channels, units and alarms.
User definable Inputs & Outputs
4 x Analog Voltage Inputs (AVI)
4 x Digital Pulsed Inputs (DPI)
4 x Digital Pulsed Outputs (DPO)
14 programmable, seven colour shift light LEDs.
On-board datalogging (512MB)
Controlled via easily accessible, face-mounted control buttons.
Configuration via Haltech software and USB cable.
